Parameter


Introduction:

High Efficiency:
U drill inserts are designed to efficiently remove large amounts of material, significantly speeding up the drilling process.

Precision and Accuracy:
U drills are capable of producing precise and consistent hole diameters, which is crucial for applications requiring tight tolerances.

Excellent Surface Finish:
U drill inserts are capable of producing high-quality surface finishes on the inside of the holes, reducing the need for secondary finishing processes.

Versatility:
U drills can be used to drill various materials, including carbon steel, stainless steel, cast iron, aluminum, titanium, brass, copper, and even plastics.

Multiple Applications:
They are suitable for a wide range of applications, from general engineering to automotive, aerospace, and heavy machinery.

Durability:
High-quality inserts and advanced coatings, such as titanium nitride (TiN) or titanium aluminum nitride (TiAlN), provide excellent wear resistance and longevity.

Stable Performance:
Designed to withstand high temperatures and stresses, U drill inserts maintain consistent performance over extended periods.

Ease of Use:
U drill inserts can be quickly installed and replaced, reducing downtime and improving overall machine uptime.

Improved Chip Control:
The geometry of U drill inserts is optimized to ensure effective chip formation and evacuation, reducing the risk of chip clogging.

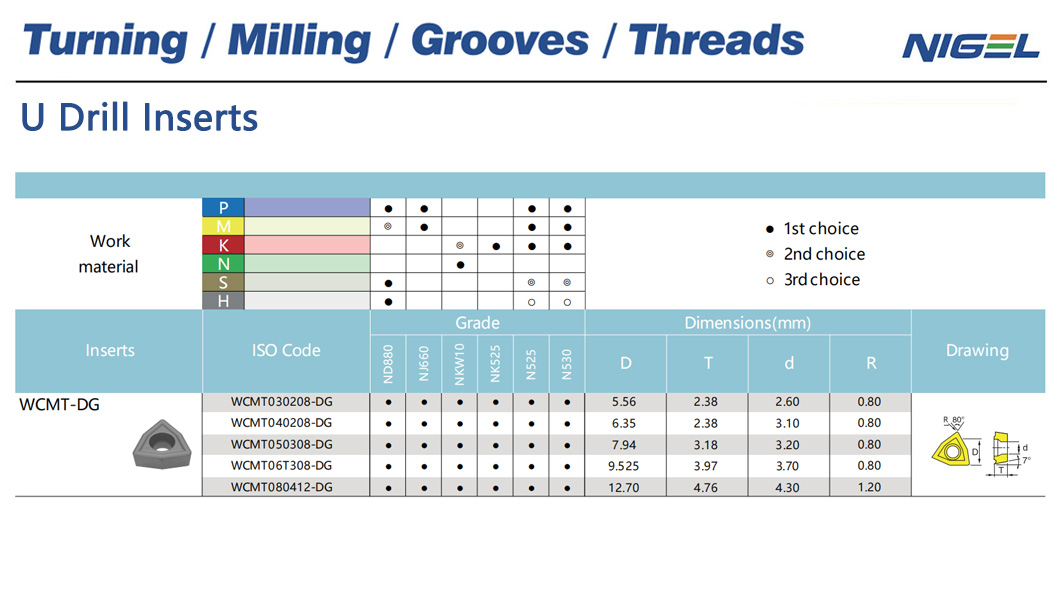

Inserts ISO Code	Grade	Dimensions(mm)
WCMT030208-DG	ND880 / NJ660 / NKW10 / NK525 / N525 / N530	D: 5.56 / T: 2.38 / d: 2.60 / R: 0.80
WCMT040208-DG	ND880 / NJ660 / NKW10 / NK525 / N525 / N530	D: 6.35 / T: 2.38 / d: 3.10 / R: 0.80
WCMT050308-DG	ND880 / NJ660 / NKW10 / NK525 / N525 / N530	D: 7.94 / T: 3.18 / d: 3.20 / R: 0.80
WCMT06T308-DG	ND880 / NJ660 / NKW10 / NK525 / N525 / N530	D: 9.525 / T: 3.97 / d: 3.70 / R: 0.80
WCMT080412-DG	ND880 / NJ660 / NKW10 / NK525 / N525 / N530	D: 12.70 / T: 4.76 / d: 4.30 / R: 1.20
