Introduction:
Precision:
Groove machining inserts are engineered to produce grooves with high accuracy, maintaining tight tolerances essential for critical applications.
Multiple Configurations: Groove inserts are available in various geometries and sizes, making them adaptable to different groove shapes and dimensions.
Wear Resistance:
Advanced coatings and optimized designs enhance the durability of groove machining inserts, leading to longer tool life and reduced need for frequent replacements.
Smooth Grooves:
They provide high-quality surface finishes, which are vital for parts that require precise fits or aesthetic considerations.
Reduced Tooling Costs:
Their extended lifespan and ability to handle various materials lower the overall tooling costs.

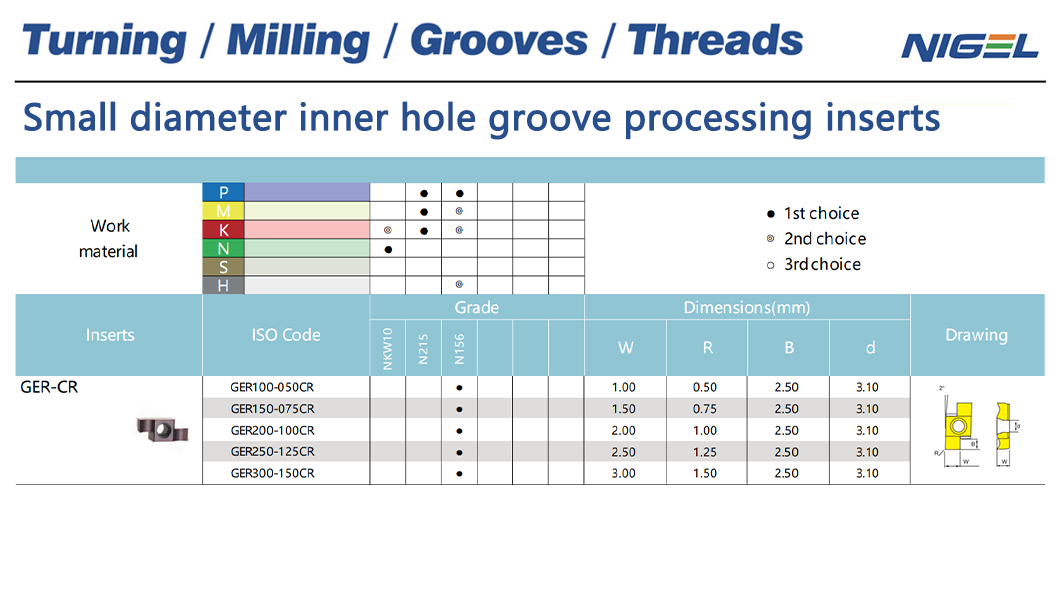

| Inserts ISO Code | Grade | Dimensions(mm) |
| GER100-050CR | N156 | W: 1.00 / R: 0.50 / B: 2.50 / d: 3.10 |
| GER150-075CR | N156 | W: 1.50 / R: 0.75 / B: 2.50 / d: 3.10 |
| GER200-100CR | N156 | W: 2.00 / R: 1.00 / B: 2.50 / d: 3.10 |
| GER250-125CR | N156 | W: 2.50 / R: 1.25 / B: 2.50 / d: 3.10 |
| GER300-150CR | N156 | W: 3.00 / R: 1.50 / B: 2.50 / d: 3.10 |
Grade Reference:
