Parameter


Introduction:

High Precision and Accuracy:
Turning inserts are designed to provide precise and consistent cuts, ensuring high-quality finishes and adherence to tight tolerances.

Excellent Surface Finish:
Turning inserts are capable of producing high-quality surface finishes, reducing the need for subsequent finishing operations.

Quick Tool Changes:
Indexable inserts can be quickly and easily changed, reducing downtime and keeping the production line running smoothly.

Versatility:
Turning inserts can be used on a variety of materials, including carbon steel, stainless steel, cast iron, aluminum, titanium, nickel alloys, and more.

Various Applications:
Suitable for a wide range of turning operations, including roughing, finishing, threading, and grooving.

Durability:
High-quality materials and advanced coatings, like titanium nitride (TiN) or titanium aluminum nitride (TiAlN), enhance the wear resistance and longevity of turning inserts.

Heat Resistance:
These inserts can withstand the high temperatures generated during turning operations, maintaining performance over extended periods.

Improved Chip Control:
The geometry of turning inserts is designed to optimize chip formation and evacuation, improving machining efficiency and reducing the risk of damaging the workpiece or tool.

Efficient Chip Removal:
Good chip control contributes to a more stable machining process and better surface finish.

Interchangeable Inserts:
Inserts can be easily swapped out for different shapes, sizes, and materials depending on the specific turning operation.

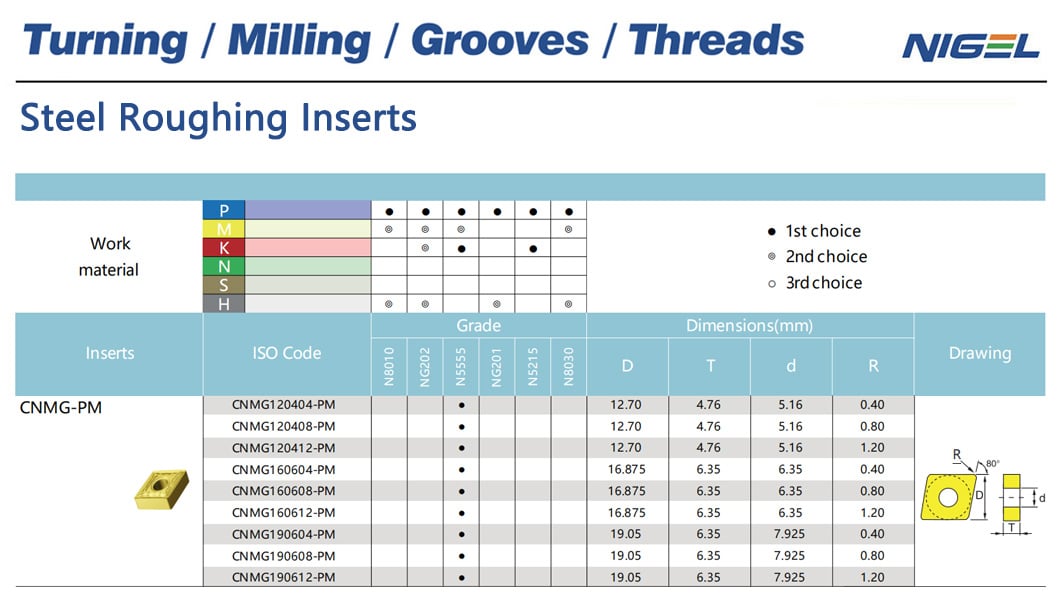

Inserts ISO Code	Grade	Dimensions(mm)
CNMG120404-PM	N5555	D: 12.70 / T: 4.76 / d: 5.16 / R: 0.40
CNMG120408-PM	N5555	D: 12.70 / T: 4.76 / d: 5.16 / R: 0.80
CNMG120412-PM	N5555	D: 12.70 / T: 4.76 / d: 5.16 / R: 1.20
CNMG160604-PM	N5555	D: 16.875 / T: 6.35 / d: 6.35 / R: 0.40
CNMG160608-PM	N5555	D: 16.875 / T: 6.35 / d: 6.35 / R: 0.80
CNMG160612-PM	N5555	D: 16.875 / T: 6.35 / d: 6.35 / R: 1.20
CNMG190604-PM	N5555	D: 19.05 / T: 6.35 / d: 7.925 / R: 0.40
CNMG190608-PM	N5555	D: 19.05 / T: 6.35 / d: 7.925 / R: 0.80
CNMG190612-PM	N5555	D: 19.05 / T: 6.35 / d: 7.925 / R: 1.20
