Introduction:
Precision:
Groove machining inserts are engineered to produce grooves with high accuracy, maintaining tight tolerances essential for critical applications.
Multiple Configurations: Groove inserts are available in various geometries and sizes, making them adaptable to different groove shapes and dimensions.
Wear Resistance:
Advanced coatings and optimized designs enhance the durability of groove machining inserts, leading to longer tool life and reduced need for frequent replacements.
Smooth Grooves:
They provide high-quality surface finishes, which are vital for parts that require precise fits or aesthetic considerations.
Reduced Tooling Costs:
Their extended lifespan and ability to handle various materials lower the overall tooling costs.

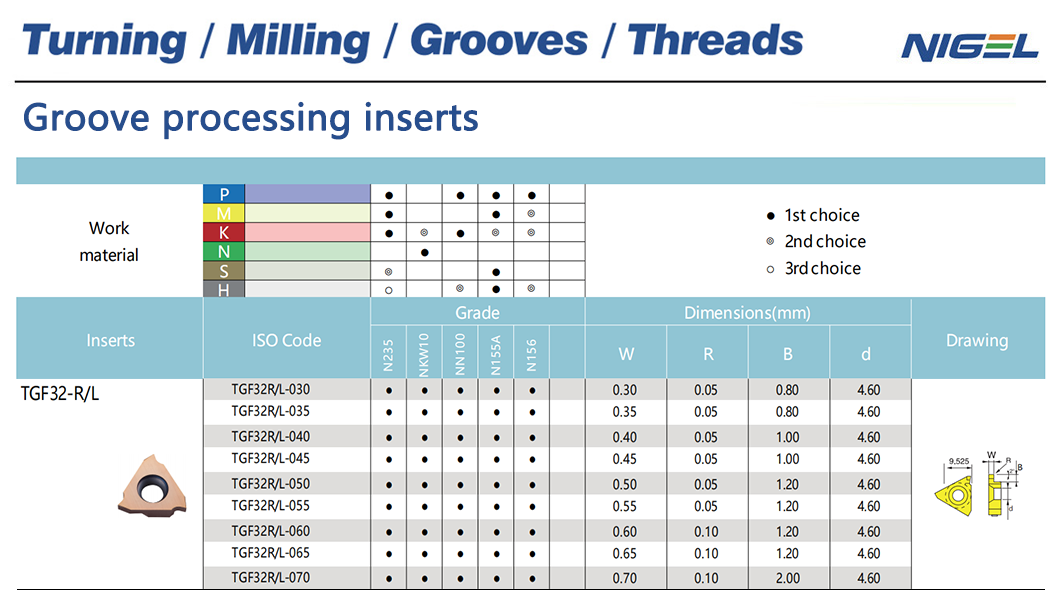

| Inserts ISO Code | Grade | Dimensions(mm) |
| TGF32R/L-030 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.30 / R: 0.05 / B: 0.80 / d: 4.60 |
| TGF32R/L-035 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.35 / R: 0.05 / B: 0.80 / d: 4.60 |
| TGF32R/L-040 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.40 / R: 0.05 / B: 1.00 / d: 4.60 |
| TGF32R/L-045 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.45 / R: 0.05 / B: 1.00 / d: 4.60 |
| TGF32R/L-050 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.50 / R: 0.05 / B: 1.20 / d: 4.60 |
| TGF32R/L-055 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.55 / R: 0.05 / B: 1.20 / d: 4.60 |
| TGF32R/L-060 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.60 / R: 0.10 / B: 1.20 / d: 4.60 |
| TGF32R/L-065 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.65 / R: 0.10 / B: 1.20 / d: 4.60 |
| TGF32R/L-070 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.70 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-075 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.75 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-080 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.80 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-085 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.85 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-090 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.90 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-095 | N235 / NKW10 / NN100 / N155A / N156 | W: 0.95 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-100 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.00 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-105 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.05 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-110 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.10 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-115 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.15 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-120 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.20 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-125 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.25 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-130 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.30 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-135 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.35 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-140 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.40 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-145 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.45 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-150 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.50 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-155 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.55 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-160 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.60 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-165 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.65 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-170 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.70 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-175 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.75 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-180 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.80 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-185 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.85 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-190 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.90 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-195 | N235 / NKW10 / NN100 / N155A / N156 | W: 1.95 / R: 0.10 / B: 2.00 / d: 4.60 |
| TGF32R/L-200 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.00 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-205 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.05 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-210 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.10 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-215 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.15 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-220 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.20 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-225 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.25 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-230 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.30 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-235 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.35 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-240 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.40 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-245 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.45 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-250 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.50 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-255 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.55 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-260 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.60 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-265 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.65 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-270 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.70 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-275 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.75 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-280 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.80 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-285 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.85 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-290 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.90 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-295 | N235 / NKW10 / NN100 / N155A / N156 | W: 2.95 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-300 | N235 / NKW10 / NN100 / N155A / N156 | W: 3.00 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-305 | N235 / NKW10 / NN100 / N155A / N156 | W: 3.05 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-310 | N235 / NKW10 / NN100 / N155A / N156 | W: 3.10 / R: 0.10 / B: 2.50 / d: 4.60 |
| TGF32R/L-315 | N235 / NKW10 / NN100 / N155A / N156 | W: 3.15 / R: 0.10 / B: 2.50 / d: 4.60 |
Grade Reference:
