Introduction:
Precision:
Groove machining inserts are engineered to produce grooves with high accuracy, maintaining tight tolerances essential for critical applications.
Multiple Configurations: Groove inserts are available in various geometries and sizes, making them adaptable to different groove shapes and dimensions.
Wear Resistance:
Advanced coatings and optimized designs enhance the durability of groove machining inserts, leading to longer tool life and reduced need for frequent replacements.
Smooth Grooves:
They provide high-quality surface finishes, which are vital for parts that require precise fits or aesthetic considerations.
Reduced Tooling Costs:
Their extended lifespan and ability to handle various materials lower the overall tooling costs.

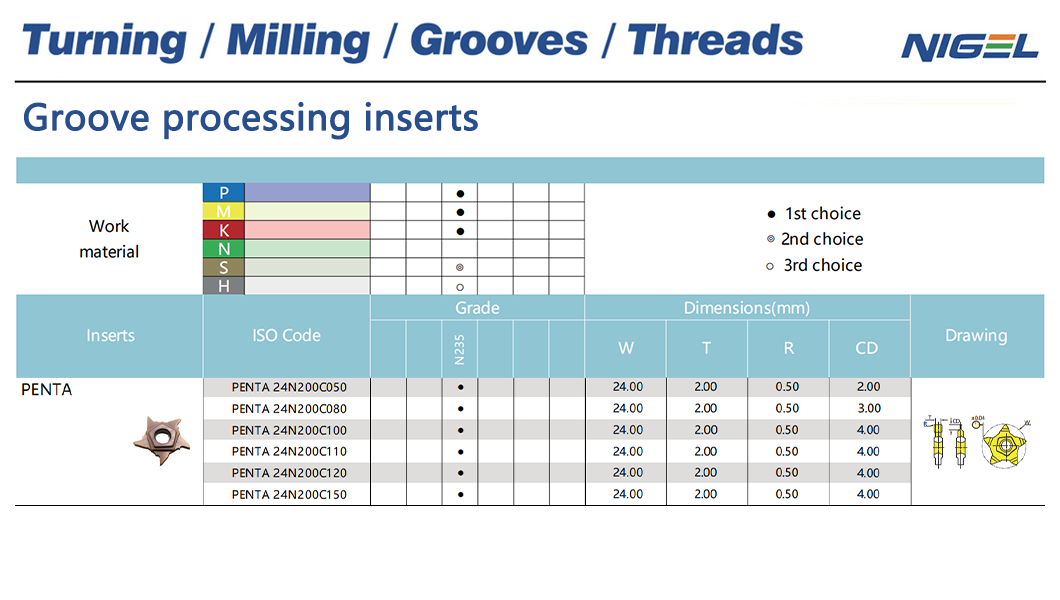

| Inserts ISO Code | Grade | Dimensions(mm) |
| PENTA 24N200C050 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 2.00 |
| PENTA 24N200C080 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 3.00 |
| PENTA 24N200C100 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.00 |
| PENTA 24N200C110 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.00 |
| PENTA 24N200C120 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.00 |
| PENTA 24N200C150 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.00 |
| PENTA 24N200C180 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.00 |
| PENTA 24N200C200 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.50 |
| PENTA 24N200C220 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.50 |
| PENTA 34N200C180 | N235 | W: 34.00 / T: 2.00 / R: 0.50 / CD: 4.50 |
| PENTA 24N200C250 | N235 | W: 24.00 / T: 2.00 / R: 0.50 / CD: 4.50 |
