Parameter


Introduction:

Precision:
Groove machining inserts are engineered to produce grooves with high accuracy, maintaining tight tolerances essential for critical applications.
Multiple Configurations: Groove inserts are available in various geometries and sizes, making them adaptable to different groove shapes and dimensions.

Wear Resistance:
Advanced coatings and optimized designs enhance the durability of groove machining inserts, leading to longer tool life and reduced need for frequent replacements.

Smooth Grooves:
They provide high-quality surface finishes, which are vital for parts that require precise fits or aesthetic considerations.

Reduced Tooling Costs:
Their extended lifespan and ability to handle various materials lower the overall tooling costs.

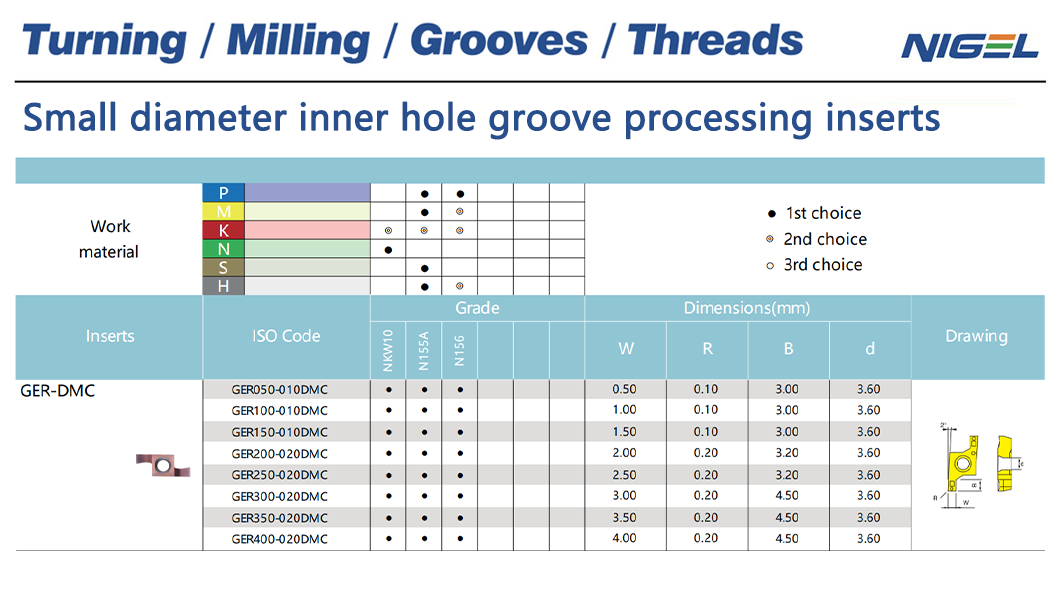

Inserts ISO Code	Grade	Dimensions(mm)
GER050-010DMC	NKW10 / N155A / N156	W: 0.50 / R: 0.10 / B: 3.00 / d: 3.60
GER100-010DMC	NKW10 / N155A / N156	W: 1.00 / R: 0.10 / B: 3.00 / d: 3.60
GER150-010DMC	NKW10 / N155A / N156	W: 1.50 / R: 0.10 / B: 3.00 / d: 3.60
GER200-020DMC	NKW10 / N155A / N156	W: 2.00 / R: 0.20 / B: 3.20 / d: 3.60
GER250-020DMC	NKW10 / N155A / N156	W: 2.50 / R: 0.20 / B: 3.20 / d: 3.60
GER300-020DMC	NKW10 / N155A / N156	W: 3.00 / R: 0.20 / B: 4.50 / d: 3.60
GER350-020DMC	NKW10 / N155A / N156	W: 3.50 / R: 0.20 / B: 4.50 / d: 3.60
GER400-020DMC	NKW10 / N155A / N156	W: 4.00 / R: 0.20 / B: 4.50 / d: 3.60
